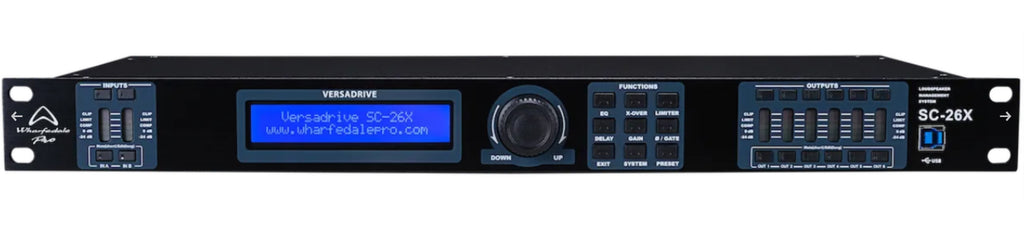

Versadrive SC-26X
To maximise the performance of any PA system – but moreover to protect it – DSP is essential.
Introducing the entry level model in the Versadrive series of DSP processors from Wharfedale Pro – SC-26X.
SC-26X replaces the long-serving SC-26 and, although listed as an entry model, the new SC-26X brings several important and practical features to loudspeaker management.
Features
- RMS Compressors and Peak Limiters.
- Dual band Dynamic EQ stage on Inputs.
- 96 KHz sampling frequency
- PC Software control
- USB, Ethernet and RS485
- Protect and survive!
Specifications
| Inputs | 2 x XLR socket |
| Outputs | 6 x XLR pin |
| Input Impedance | Balanced : 20 KΩ |
| Output Impedance | Balanced : 100 KΩ |
| PC Port | USB (Front panel). Ethernet and RS485 (Rear panel) |
| CMRR | >70 dB (1 KHz) |
| Input range | ≤ +16.3 dBu |
| Frequency Response | 19.7 Hz – 20 KHz (+/- 0.5 dB) |
| SNR | >104 dB |
| THD | < 0.01% (Output = 0 dBu / 1 KHz) |
| Channel separation | > 100 dB (1 KHz) |
| Processor | 32-bit processor |
| AD / DA converter | 24-bit, 96 KHz sampling frequency |
| Display | 2 x 24 LCD backlight display. 5-band LED display. Mute / Editing status |
| Power consumption | ≤ 25 W |
| Power | AC 110 V / 220 V 50 / 60 Hz |
| Dimensions – Unpacked (W x D x H) | 482 mm x 190 mm x 44 mm |
| Net Weight | 3.6 Kg |
| Dimensions – Packed (W x D x H) | 562 mm x 296 mm x 98 mm |
| Gross Weight | 4.5 Kg |
